Filter unit Comfort 75

  • Powerful filter system for pools up to 40,000 l capacity
  • Self-priming filter pump with integrated pre-filter
  • Connections for all commercially available pools Ø 32/38 mm plus free INTEX adapter
  • 7-way valve with solid adjustment lever
  • Extensive range of accessories available
€359.00
pce

Description

Filter unit Comfort 75 has a circulation rate of 7.800 l/h, the connection is 220-240V~ / 50Hz / 550 W. This filter unit can be used for pools with approx. 40.000 l water content and can be connected to all commercially available installation pools with a hose connection Ø 32/38 mm. The filter unit can be used up to a maximum water temperature of 35 ° C. To maintain crystal-clear and sparkling pool water, the filter system can be operated with filter sand as well as with Filter Balls as filter medium.

Technical Information

Water capacity
40.000 l
Circulation rate
7.800 l/h
Pump capacity
9.400 l/h
Connection size
Ø 32/38 mm
Power supply
220-240V~ / 50Hz
Input power maximum
550 W
Function principle
self-priming
Head
10,00 m
Pre-filter
yes
Suitable for salt water: yes
Kesselgröße (ø): 415 mm
Valve type: 7-way valve with pressure gauge
Schalldruckpegel: 70 dB(A)
Water temperature: 10°C - 35°C
Usable filter medium 1: Quartz filter sand
Quantity of usable filter medium 1: 25 kg
Sand grain size: 0,70 - 1,20 mm
Usable filter medium 2: Filter Balls, Filter Wool Flakes
Quantity of usable filter medium 2: 700 g
Usable filter medium 3: no
Pump article number: 040922
Trafo inkludiert: no
RCD inkludiert: no
Timer present: no
Safety class: IPX5
Protection class: I
Isolierstoffklasse: F
Cable length to unit: 1,50 m
Article number: 040100Y

Please note that the products shown represent the current scope of delivery, as of 2026.

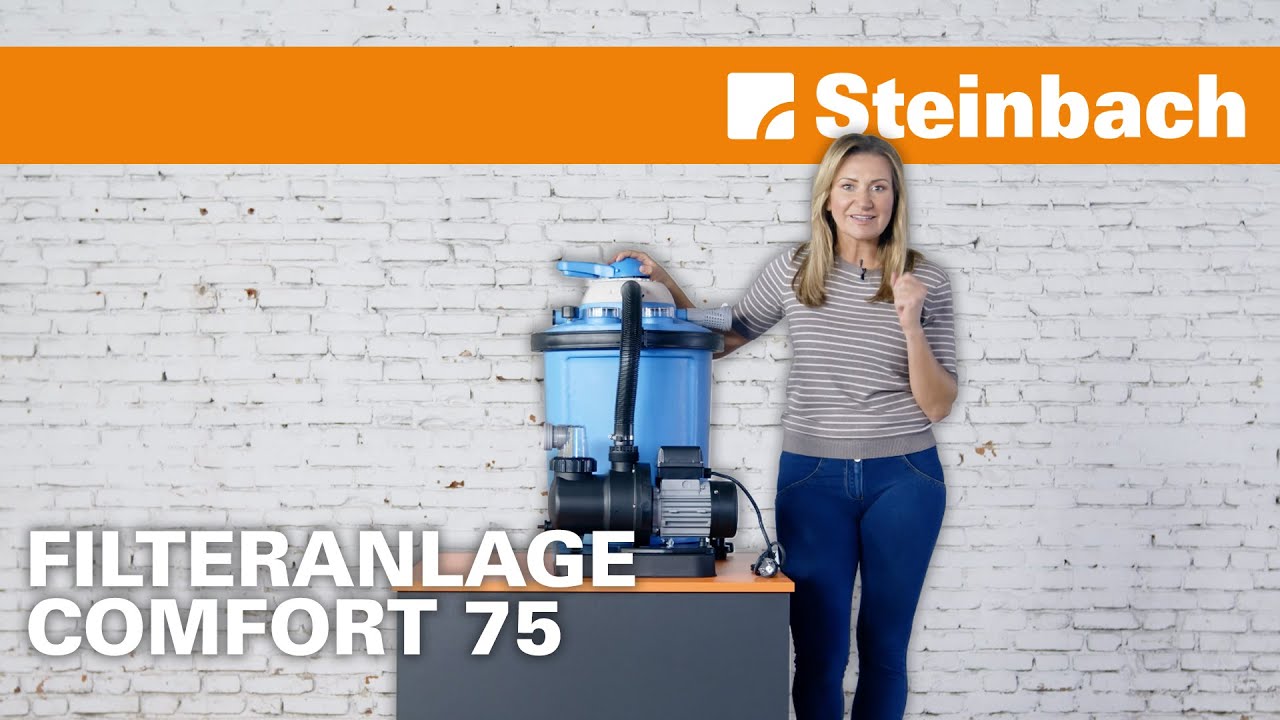

Videos
